NETUM CS8501 Wireless QR Code Scanner – Upgraded Bluetooth Barcode Scanner, Mini Portable 1D & 2D Barcode Reader for Inventory Management, Image Scanner for Tablets, Android, iOS, PC, and POS Systems
$23.99
Related Products
Product description
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
4.4 out of 5 stars 146
4.4 out of 5 stars 146
4.4 out of 5 stars 146
4.4 out of 5 stars 146
—
—
Price
$79.00$79.00 $179.00$179.00 $129.00$129.00 $199.00$199.00 $370.83$370.83 $342.67$342.67
Sensor
megapixel CMOS sensor Honeywell’s HS7DB 2D imager scan engine 1.3 megapixel CMOS sensor Zebra SE4107 2D imager scan engine Extended Range CMOS sensor Precise DPM CMOS sensor
Resolution
1280×800 pixels 1280 x 800 pixels 1280 x 1080 pixels 1280 x 960 pixels, rolling shutter 1280 x 960 pixels, rolling shutter 1280 x 1024 pixels, rolling shutter
Battery Capacity
2400mAh 2400mAh 2400mAh 2400mAh 3200mAh (standard package includes two batteries) 3200mAh (standard package includes two batteries)
Scan Modes
Trigger Mode, Continuous Scan, Auto-sensing Trigger Mode, Continuous Scan, Auto-sensing Trigger Mode, Continuous Scan, Auto-sensing Trigger Mode, Continuous Scan, Auto-sensing Trigger Mode, Continuous Scan, Auto-sensing, Command-based Activation, etc. Trigger Mode, Continuous Scan, Auto-sensing, Command-based Activation, etc.
Support barcodes
1D&2D Barcodes 1D&2D Barcodes, Support OCR-B, for passport scanning 1D&2D Barcodes, Capable of reading standard DPM codes 1D&2D Barcodes, Support OCR-B, for passport scanning 1D&2D Barcodes 1D&2D Barcodes, Capable of reading complex DPM codes
Data Transmission Modes
USB HID (USB COM), Bluetooth (HID, SPP, BLE) USB HID (USB COM), Bluetooth (HID, SPP, BLE) USB HID (USB COM), Bluetooth (HID, SPP, BLE) USB HID (USB COM), Bluetooth (HID, SPP, BLE) USB HID (USB COM), RS232, Bluetooth (HID, SPP, BLE) USB HID (USB COM), RS232, Bluetooth (HID, SPP, BLE)
NETUM CS8501 Bluetooth 2D Barcode Scanner
Product Advantages:
Excellent scanning capability for barcodes with small size, low contrast, damage, distortion, and other challenging printing conditions.Short minimum scanning distance with a relatively long depth of field.Capable of reading standard DPM (Direct Part Marking) codes.
**Note:**
– Not suitable for long-range scanning.
– Cannot read complex DPM codes.
Specifications
1. Optical Performance 1.1 Resolution: 1280 (H) × 1080 (V) 1.2 Illumination: White LED (IEC 62471 compliant) 1.3 Aiming: Red crosshair aimer 1.4 Typical Frame Rate: Up to 120 frames per second 1.5 Motion Tolerance: 6 m/s [19.7 ft/s] 1.6 Field of View: 43° (horizontal), 36° (vertical) 1.7 Scan Angle: Roll: 360°, Pitch: ±60°, Skew: ±60° 1.8 Supported Symbologies:
1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code 93, Code 32, Code 11, Codabar, Plessey, MSI, Interleaved 2 of 5, IATA 2 of 5, Matrix 2 of 5, Straight 2 of 5, Pharmacode, GS1 DataBar (Omnidirectional, Expanded, Limited), Composite Codes (A, B, C)2D: Data Matrix, QRCode, Micro QR, PDF417, Micro PDF417, Aztec, MaxiCode, Han Xin Code 1.9 Typical Reading Range:QRCode (5 mil): 40 mm – 100 mmCode 39 (3 mil): 35 mm – 140 mmCode 39 (5 mil): 35 mm – 190 mmEAN-13 (13 mil): 50 mm – 330 mm 1.10 Minimum Print Contrast: ≥ 20% (UPC/EAN 100%, PCS 90%) 1.11 Minimum Resolution:1D: ≥ 3 mil2D: ≥ 5 mil
2. Wireless Specifications 2.1 Communication Modes: Wired USB, 2.4GHz wireless, Bluetooth (supports v2.0, v3.0, v4.0, v4.2) 2.2 Communication Range:
2.4GHz: Up to 65 meters (line of sight)Bluetooth: Up to 20 meters (line of sight) 2.3 Battery Capacity: 2400mAh 2.4 Charging Time: Approx. 5 hours 2.5 Standby Mode: Enters standby after 3 minutes of inactivity 2.6 Charging Input: 5V, 1~2A
3. Electrical Characteristics 3.1 Operating Voltage: 5V ±5% 3.2 Standby Current: 0.6 μA 3.3 Operating Current:
Typical: 170 mA ±5%Max: 260 mA ±5%
4. Functional Features 4.1 Interface: Standard USB 4.2 Communication Protocols: 2.4GHz, USB HID (USB COM), Bluetooth (HID, SPP, BLE) 4.3 Feedback: Beeper, Vibration 4.4 Scan Modes: Trigger mode*, Continuous scan, Auto-sensing, Command mode, etc.
Application Scenarios
1. Retail Checkout
Ideal for high-volume barcode scanning in supermarkets and convenience stores. Lightweight and easy to operate, the scanner improves checkout speed. Bluetooth and wireless connectivity ensure fast integration with POS systems, and the extended battery supports all-day usage.
2. Warehouse Inventory
Compact design allows seamless maneuvering through tight shelf spaces. Durable, dust- and shock-resistant housing fits rugged warehouse environments. Ergonomic grip reduces hand fatigue during long inventory sessions. Real-time syncing to WMS via 2.4G or Bluetooth ensures efficient stock management.
3. Logistics & Parcel Handling
Perfect for couriers on the move. Soft rubber housing resists wear and outdoor elements. Comfortable grip eases frequent scanning tasks. Multiple transmission options ensure compatibility with handheld devices. High-capacity battery ensures uninterrupted package tracking all day.
4. Manufacturing Production Line
Portable for one-handed use between machinery. Durable rubber design withstands harsh workshop conditions. Stable connection to MES systems via wired or wireless transmission. Long battery life supports continuous workflow monitoring.
5. Food Service Order & Payment
Compact and durable design enables quick scan-to-order. Withstands daily wear in restaurant settings. Comfortable to hold and fast to connect via Bluetooth to ordering systems. Reliable battery performance during peak dining hours.
6. Library Book Management
Portable and ergonomic for long-term scanning in check-in/out and inventory processes. Resistant to wear and long sessions. Wireless transmission supports library systems. Battery power supports full-day book management.
7. Apparel Store Management
Effortlessly scans garment hang tags. Durable design resists frequent in-store use. Comfortable grip enhances staff efficiency during inventory and sales. Multi-mode transmission connects with POS systems; battery ensures full-day scanning support.
8. Event & Ticketing
Lightweight design allows staff to scan tickets while navigating crowds. Durable exterior resists event wear and tear. Extended battery life ensures uninterrupted check-in operations throughout events. Fast Bluetooth/2.4G connection to ticketing systems boosts efficiency.
Product Features
1、Ergonomic Design:
Engineered to fit naturally in your hand, offering a comfortable grip that reduces fatigue during extended use.
2、Extended Battery Life:
Equipped with a powerful 2400mAh battery—double the standard capacity—ensuring all-day performance with fewer charging interruptions. Ideal for high-frequency scanning throughout the workday.
3、Rugged & Durable Build:
Constructed with upgraded ABS+TUP materials that are wear-resistant and impact-resistant. Built to withstand daily bumps and drops while extending the product’s life cycle.
4、Drop Protection Reinforced:
Successfully passed 2-meter drop tests. Its shock-absorbing materials and reinforced internal structure help prevent damage from accidental drops, ensuring uninterrupted operation even in high-mobility or rough handling scenarios.

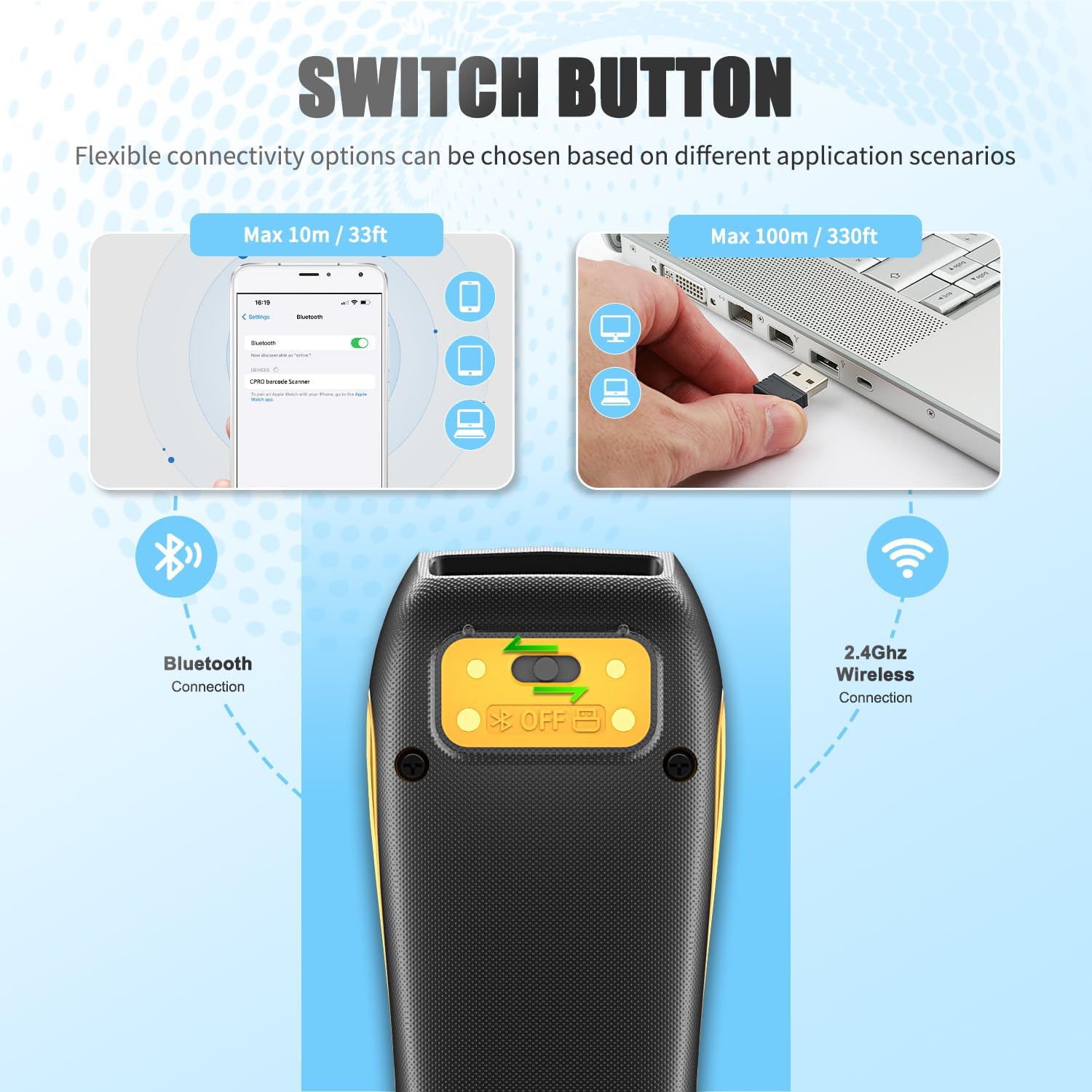

5、Quick Mode Switching:
Three-position switch enables fast toggling between Bluetooth and 2.4G wireless modes—no need to scan tedious setup barcodes for mode switching.
6、Multi-Status Indicator Lights:
Smart LED indicators reflect work status in real time. Battery status is clearly shown with different lighting patterns, making usage and monitoring more intuitive.
7、Soft Silicone Buttons:
The trigger features soft, resilient silicone for a gentle, cushioned press—allowing long scanning sessions with reduced finger fatigue.
Important Notes:
• Scanning a setting code to switch modes is not supported. You must use the physical switch on the bottom of the scanner to change connection modes.
• Make sure the device is within range and Bluetooth is turned on.
• If a connection is successful, the blue light will stop flashing and stay solid.
• If it fails to connect after several attempts, the scanner will emit a long beep, the blue light will turn off, and the scanner will automatically enter sleep mode.
**Physical Power Switch: Easily toggle between Power Off, Bluetooth Mode, and 2.4G Wireless Mode with the built-in physical power switch. Plus, the unique battery indicator light clearly displays the remaining battery level—no more guessing or worrying about running out of power unexpectedly.
**High-Resolution Scanning: NETUM CS8501 Barcode Scanner is equiped with advanced 1280H × 1024V pixels(1.3M) CMOS sensor. With high-speed global exposure, it can read all kinds of small barcodes smoothly(1D: ≥3 mil ; QR: ≥5 mil(HD); DM: ≥5 mil(SR)), precise DPM barcode scanning, It can be widely used in electronics manufacturing, photovoltaic, new energy, medical and inspection equipment, intelligent manufacturing.
**3-in-1 Connections & Widely Compatible: -①Latest Bluetooth technology for wireless pairing with a variety of devices, -②2.4GHz Wireless Adapter for quick Plug & Play connectivity -③Wired USB Connection for stable and reliable data transmission, NETUM CS8501 wireless bluetooth barcode scanner can be connected to a variety of devices, such as smartphones, computers, POS, iPhones, iPads, and laptops.
**Long Battery Life: Powered by a 2400mAh high-capacity battery, the scanner delivers up to 12 hours of continuous operation under heavy use. The advanced battery management algorithm ensures ultra-low power consumption. Real-time battery level indicators help eliminate battery-related interruptions, keeping your workflow smooth and efficient.
**Rugged and Durable Design: Crafted from tough ABS plastic and reinforced with soft TPU material covering over 45% of its body, the CS8501 is built to last. It can withstand drops from up to 4.92 feet (1.5 meters) onto concrete floors. The ergonomically designed handle and trigger provide a comfortable grip, while anti-slip and sweat-resistant textures on the handle reduce fatigue during extended use.
